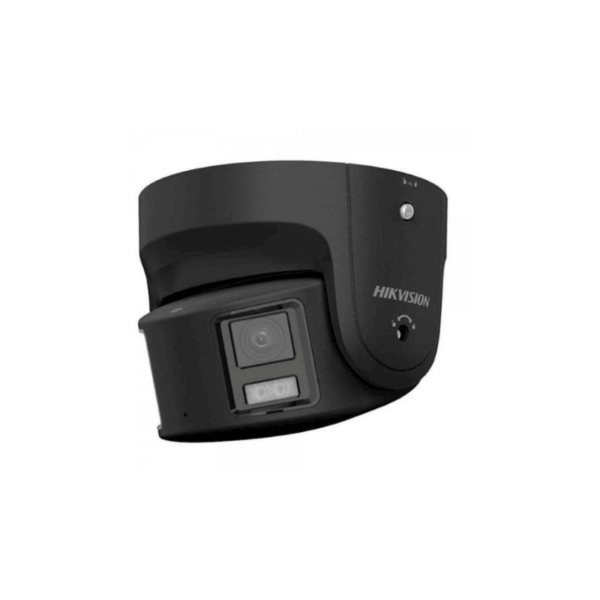

IP dome kamera Hikvision DS-2CD2387G2P-LSU/SL F4 (juoda)

0 out of 5

612,15

PVM įskaičiuotas

  • 8MP kamera
  • Vienas vaizdas, kuriame pateikiamos visos kameros aprėptos scenos
  • 24/7 ColorVu spalvotas vaizdas
  • H.265+ suspaudimo technologija
  • 130dB WDR
  • Žmonių ir mašinų atpažinimas ir klasifikacija
  • Aktyvus šviesos signalas ir garso signalas, perspėjantis įsibrovėlius
  • IP67
Produkto statusas: Turime sandėlyje (Pristatymas 1-3 d.d.) Produkto kodas: 7225166fce5a

Aprašymas

  • Kamera
  • Sensorius2 × 1/1.8″ Progressive Scan CMOS
  • Maks. rezoliucija5120 × 1440
  • Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Užrakto greitis1/3 s to 1/100,000 s
  • Kampo keitimasPan: -30° to 30°,tilt: -75° to 75°
  • Lęšis
  • Lęšio tipasFixed focal lens, Dual lens: 4 mm
  • FOV4 mm, horizontal FOV: 180°, vertical FOV: 44°
  • Lęšio montavimasM16
  • Rainelės tipasFixed
  • DiafragamaF1.0
  • Ryškumo gylis3.6 m to ∞
  • DORI
  • DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
  • Apšvietimas
  • Papildomo apšviešimo tipasWhite Light
  • Papildomo apšvietimo diapazonasUp to 30 m
  • Išmanus papildomas apšvietimasYes
  • Vaizdas
  • Pagrindinis srautas

    When WDR is On:

    50 Hz: 12.5 fps (5120 × 1440)

    60 Hz: 15 fps (5120 × 1440)

    When WDR is Off:

    50 Hz: 20 fps (5120 × 1440)

    60 Hz: 20 fps (5120 × 1440)



  • Antrinis srautas

    When WDR is On:

    50 Hz: 12.5 fps (1920 × 536, 960 × 272)

    60 Hz: 15 fps (1920 × 536, 960 × 272)

    When WDR is Off:

    50 Hz: 20 fps (1920 × 536, 960 × 272)

    60 Hz: 20 fps (1920 × 536, 960 × 272)



  • Vaizdo suspaudimas

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG



  • Vaizdo bitų greitis32 Kbps to 16 Mbps
  • H.264 tipasBaseline Profile,Main Profile,High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR,VBR
  • SVCH.264 and H.265 encoding
  • ROI1 fixed region(s) for main stream
  • Garsas
  • Garso tipasMono sound
  • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Pašalinių garsų šalinimasYes
  • Internetas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user



  • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Vidinė atmintis

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.



  • KlientasiVMS-4200,Hik-Connect,Hik-Central
  • Naršyklė

    Plug-in required live view: IE 10, IE 11 ,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

    Local service: Chrome 57.0+, Firefox 52.0+



  • Nuotrauka
  • Nuotraukos parametrų keitiklisYes
  • Nuotraukos nustatymaisaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Diena/Naktis režimasDay,Night,Auto,Schedule
  • WDR130 dB
  • SNR≥ 52 dB
  • Nuotraukų pagražinimasBLC,HLC,3D DNR
  • Sąsaja
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
  • Įmontuotas mikrofonasYes
  • Įmontuotas garsiakalbisMax. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
  • Garsas

    1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium



  • Signalizacija1 input, 1 output (max. 24 VDC, 1 A)
  • Perkrovimo mygtukasYes
  • Funkcijos
  • Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
  • Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
  • Išmaniosios funkcijos
  • Perimetro apsaugaLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
  • Pagrindinis
  • Sistemos parametrai

    12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W



  • MedžiagaBase: metal, cover: metal
  • Dydis

    Ø155 mm × 155.3 mm (Ø6.1 × 6.1″)”



  • Pakuotės dydis230 mm × 230 mm × 230 mm (9″ × 9″ × 9″)
  • Approx. 1110 g (2.4 lb.)
  • Svoris su įpakavimuApprox. 1900 g (4.2 lb.)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Pagrindinės funkcijosAnti-flicker, heartbeat, password reset via email, password protection, one-key reset
  • Flashing LightYes
  • Patvirtinimai
  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7



  • Saugumas

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017



  • Aplinkosauga

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006



  • ApsaugaIP67: IEC 60529-2013

Papildoma informacija

Svoris1,303 kg
Gamintojas

Hikvision
