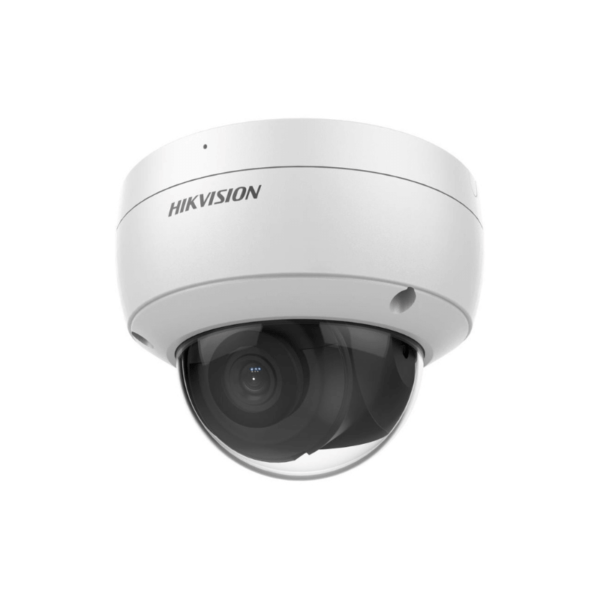

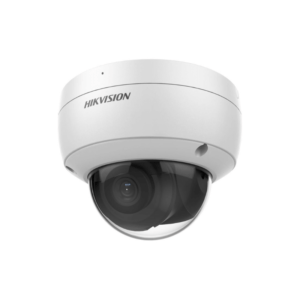

Hikvision dome DS-2CD2163G2-IU F4

0 out of 5

253,23

PVM įskaičiuotas

  • 6MP kamera
  • 120dB WDR
  • H.265+ suspaudimo technologija
  • Žmonių ir mašinų atpažinimas ir klasifikacija
  • Integruotas mikrofonas garso apsaugai realiuoju laiku
  • IP67, IK10
Produkto statusas: Turime sandėlyje (Pristatymas 1-3 d.d.) Produkto kodas: 2ea392c06cfe

Aprašymas

  • Kamera
  • Sensorius1/2.4″ Progressive Scan CMOS
  • Maks. rezoliucija3200 × 1800
  • Min. apšvietimasColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Užrakto greitis1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Kampo keitimasPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lęšis
  • Lęšio tipasFixed focal length, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;

    4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°



  • Lęšio montavimasM12
  • Rainelės tipasFixed
  • DiafragamaF1.6
  • DORI
  • DORI

    2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;

    4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m



  • Apšvietimas
  • Papildomo apšviešimo tipasIR
  • Papildomo apšvietimo diapazonasUp to 30 m
  • Išmanus papildomas apšvietimasYes
  • IR bangos ilgis850 nm
  • Vaizdas
  • Pagrindinis srautas

    50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)



  • Antrinis srautas

    50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)



  • Trečias srautas

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.



  • Vaizdo suspaudimas

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.



  • Vaizdo bitų greitis32 Kbps to 16 Mbps
  • H.264 tipasBaseline Profile/Main Profile/High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Garsas
  • Garso suspaudimasG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Pašalinių garsų šalinimasYes
  • Internetas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • KlientasiVMS-4200, Hik-Connect, Hik-Central
  • Naršyklė

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+



  • Nuotrauka
  • Nuotraukos parametrų keitiklisYes
  • Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Diena/Naktis režimasDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Nuotraukų pagražinimasBLC, HLC, 3D DNR
  • Privatumo kaukė4 programmable polygon privacy masks
  • Sąsaja
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Įmontuotas mikrofonasYes
  • Perkrovimo mygtukasYes
  • Funkcijos
  • Pagrindinės funckcijosMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Išmaniosios funkcijos

    Line crossing detection, intrusion detection

    Supports human and vehicle targets classification

    Face detection



  • SąsajaUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
  • Pagrindinis
  • Sistemos parametrai

    12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 7.5 W



  • Medžiaga

    Aluminum alloy body

    Bubble: plastic



  • DydisØ121.4 mm × 92.2 mm (Ø4.8″ × 3.7″)
  • Pakuotės dydis150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
  • SvorisApprox. 440 g (1.0 lb.)
  • Svoris su įpakavimuApprox. 670 g (1.47 lb.)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Kalba

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



  • Pagrindinės funkcijosHeartbeat, mirror, password reset via email, pixel counter, anti-flicker
  • Patvirtinimai
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SaugumasUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • AplinkosaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ApsaugaIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
