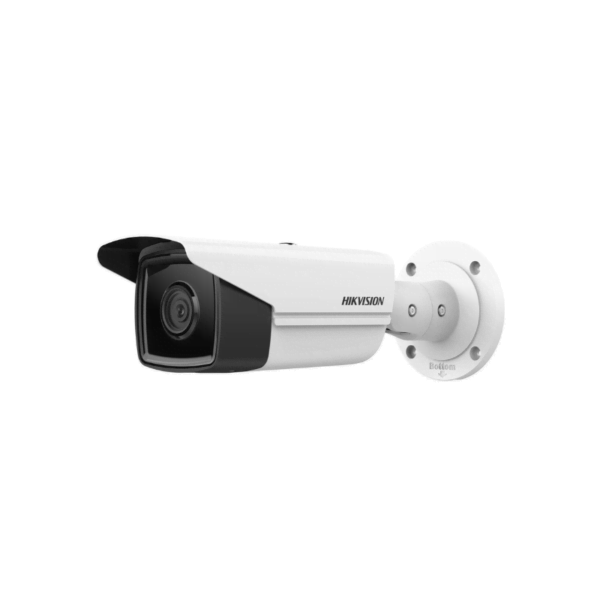

Hikvision bullet DS-2CD2T63G2-4I F2.8

0 out of 5

282,73

PVM įskaičiuotas

  • 6MP IP Bullet kamera
  • H.265+
  • IR iki 80m
  • 120dB WDR
  • SD kortelės talpa iki 256 GB
  • IP67
Produkto statusas: Turime sandėlyje (Pristatymas 1-3 d.d.) Produkto kodas: db7ef0717b81

Aprašymas

  • Kamera
  • Sensorius1/2.8″ Progressive Scan CMOS
  • Maks. raiška3200 × 1800
  • Min. apšvietimasColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Užrakto greitis1/3 s to 1/100,000 s
  • Diena & naktisIR cut filter
  • Kampo reguliavimasPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lęšiai
  • LęšiųFixed lens, 2.8, 4, and 6 mm optional
  • Židinio nuotolis & FOV

    2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

    4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

    6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°



  • Lęšio montavimasM12
  • Iris tipasFixed
  • DiafragmaF1.6
  • DORI
  • DORI

    2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m

    4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

    6 mm: D: 147 m, O: 58 m, R: 29 m, I: 15 m



  • Apšvietimas
  • Pagalbinės šviesos tipasIR
  • Pagalbinės šviesos diapozonas

    -2I: up to 60 m

    -4I: up to 80 m



  • Išmani pagalbinė šviesaYes
  • IR bangų ilgis850 nm
  • Vaizdo įrašymas
  • Pagrindinis srautas

    50 Hz: 20 fps (3200 × 1800)

    25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 20 fps (3200 × 1800)

    30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)



  • Pagalbinis srautas

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)



  • Tretinis srautas

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.



  • Vaizdo suspaudimas

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.



  • Vaizdo bitų greitis32 Kbps to 16 Mbps
  • H.264 tipasBaseline Profile/Main Profile/High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR/VBR
  • SVCH.264 and H.265 encoding
  • ROI1 fixed region for main stream and sub-stream
  • Tinklas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • Naudotojas/transliuotojasUp to 32 users. 3 user levels: administrator, operator and user
  • SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Tinklo saugyklaNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • KlientasiVMS-4200, Hik-Connect, Hik-Central
  • Internetinė naršyklė

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view : Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+



  • Nuotraukos
  • Nuotraukų nustatymaiYes
  • Nuotraukų nustatymaiRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Dienos/nakties keitimasDay, Night, Auto, Schedule
  • WDR120 dB
  • SNR≥ 52 dB
  • Nuotraukų gerinimasBLC, HLC, 3D DNR
  • Sąsajos
  • Eterneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė saugyklaBuilt-in memory card slot, support micro SD card, up to 256 GB
  • Atkūrimo mygtukasYes
  • Įvykiai
  • Paprasti įvykiaiMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Išmanūs įvykiaiFace detection
  • SujungimasUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
  • Pagrindinis
  • Galia

    -2I:

    12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

    -4I:

    12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W



  • MatmenysØ105 mm × 293 mm (Ø4.13″ × 11.53″)
  • Pakuotės matmenys386 mm× 156 mm × 155 mm (15.2″ × 6.2″ × 6.2″)
  • SvorisApprox. 1065 g (2.4 lb.)
  • Svoris su pakuoteApprox. 1560 g (3.5 lb.)
  • Laikymo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Paleidimo ir laikymo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Kalba

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



  • Pagrindinės funkcijosAnti-flicker, heartbeat, password reset via email, pixel counter
  • Patvirtinimai
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SaugumasUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • AplinkosaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • SaugumasIP67 (IEC 60529-2013)

Papildoma informacija

Svoris1,12 kg
Gamintojas

Hikvision
