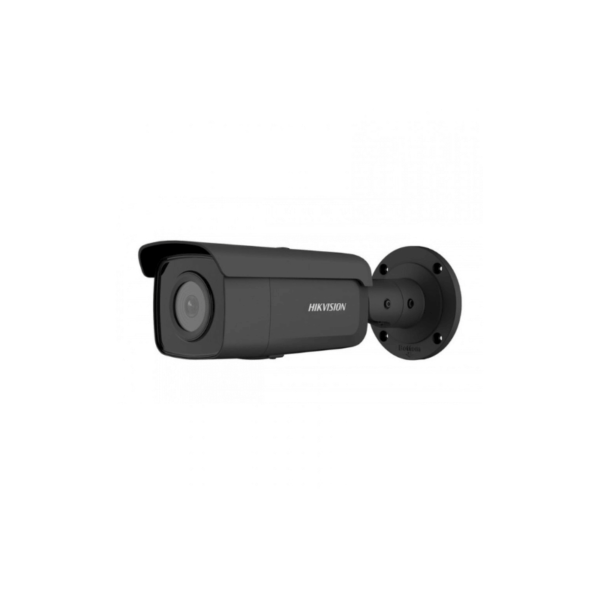

Hikvision bullet DS-2CD2T46G2-4I F4 (C) (juoda)

0 out of 5

285,66

PVM įskaičiuotas

  • 4MP kamera
  • DarkFighter technologija
  • 120dB WDR
  • H.265+ suspaudimo technologija
  • Žmonių ir mašinų atpažinimas ir klasifikacija
  • IP67
Produkto statusas: Turime sandėlyje (Pristatymas 1-3 d.d.) Produkto kodas: bfe87e338744

Aprašymas

  • Kamera
  • Sensorius1/3″ Progressive Scan CMOS
  • Maks. rezoliucija2688 × 1520
  • Min. apšvietimasColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Užrakto greitis1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Kampo keitimasPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lęšis
  • Lęšio tipasFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

    4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°

    6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°



  • Lęšio montavimasM12
  • Rainelės tipasFixed
  • DiafragamaF1.4
  • DORI
  • DORI

    2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

    4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m

    6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m



  • Apšvietimas
  • Papildomo apšviešimo tipasIR
  • Papildomo apšvietimo diapazonas

    2I: Up to 60 m

    4I: Up to 80 m



  • Išmanus papildomas apšvietimasYes
  • IR bangos ilgis850 nm
  • Vaizdas
  • Pagrindinis srautas

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)



  • Antrinis srautas

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)



  • Trečias srautas

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.



  • Vaizdo suspaudimas

    Main stream: H.265/H.264/H.265+/H.264+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.



  • Vaizdo bitų greitis32 Kbps to 8 Mbps
  • H.264 tipasBaseline Profile/Main Profile/High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Internetas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Vidinė atmintis

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.



  • KlientasiVMS-4200, Hik-Connect, Hik-Central
  • Naršyklė

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+



  • Nuotrauka
  • Nuotraukos parametrų keitiklisYes
  • Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Diena/Naktis režimasDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Nuotraukų pagražinimasBLC, HLC, 3D DNR
  • Sąsaja
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD card, up to 512 GB
  • Perkrovimo mygtukasYes
  • Funkcijos
  • Pagrindinės funckcijosMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Išmaniosios funkcijos

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection

    Scene change detection



  • SąsajaUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
  • Išmaniosios funkcijos
  • Veido atpažinimasYes
  • Pagrindinis
  • Sistemos parametrai

    2I:

    12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

    4I:

    12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W



  • DydisØ105 mm × 289.5 mm (Ø4.1″ × 11.4″)
  • Pakuotės dydis386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
  • SvorisApprox. 1075 g (2.4 lb.)
  • Svoris su įpakavimuApprox. 1584 g (3.5 lb.)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Kalba

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



  • Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Patvirtinimai
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
  • Saugumas

    UL (UL 60950-1);

    CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

    CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

    LOA (IEC/EN 60950-1)



  • AplinkosaugaCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
  • ApsaugaIP67 (IEC 60529-2013)
