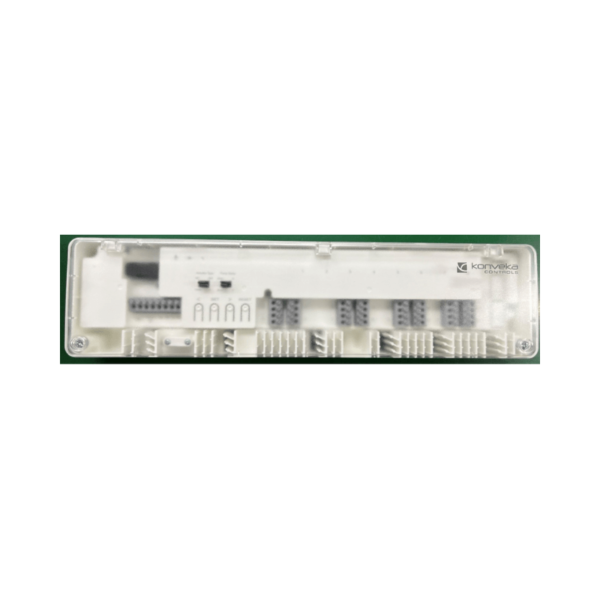

Konveka INK-C wireless 8-zone controller

Description

The Konveka INK-C, working in conjunction with Konveka INK room thermostats, regulates the temperature of up to 8 rooms. This allows different temperatures to be maintained in each room, ensuring greater comfort and energy savings. Konveka INK-C controls actuators, boilers and circulators by sending a 230V on/off signal.

Key Features:

• Heating and cooling control for up to 8 rooms
• Control of up to 16 actuators
• Boiler or heat pump control
• Circulation pump control
• Boiler, heat pump and circulation pump activation delay setting
• LED indicators
• DIN rail mounting or bolted to the wall

Technical specifications:

• Supply voltage: 230V AC, 50/60 Hz
• Maximum amperage: 2A
• Operating temperature: 0 – 45°C
• Frequency of communication with INK: 868 MHz
• Operating and storage humidity: 5 – 95% RH (non-condensing)
• Storage temperature: -10 to 45°C
• Dimensions: 360 x 88 x 48 mm

What’s included:

• 1x controller
• 1x user manual
• 1x cardboard box
• 2x wood screws
• 2 screws with nylon pins

Instructions (Lithuanian)
